OCPP Action Center

The Open Charge Point Protocol (OCPP) is an open-source communication standard that allows electric vehicle (EV) charging stations and charging station networks to communicate with each other.

As part of the OCPP Action Center, you can perform the following tasks:

• Change Availability
• Reset Station
• Change Configuration
• Trigger Messages

1. Navigate to Bulk Operations > Bulk Operations. The following screen appears:
2. Select OCPP Action Center from the Select Type drop-down list.
3. Select the option from the Station Actions drop-down list. The following options are available:
   • Change Availability
   • Reset Station
   • Change Configuration
   • Trigger Messages

Change Availability

To change the availability of the network, follow these steps:

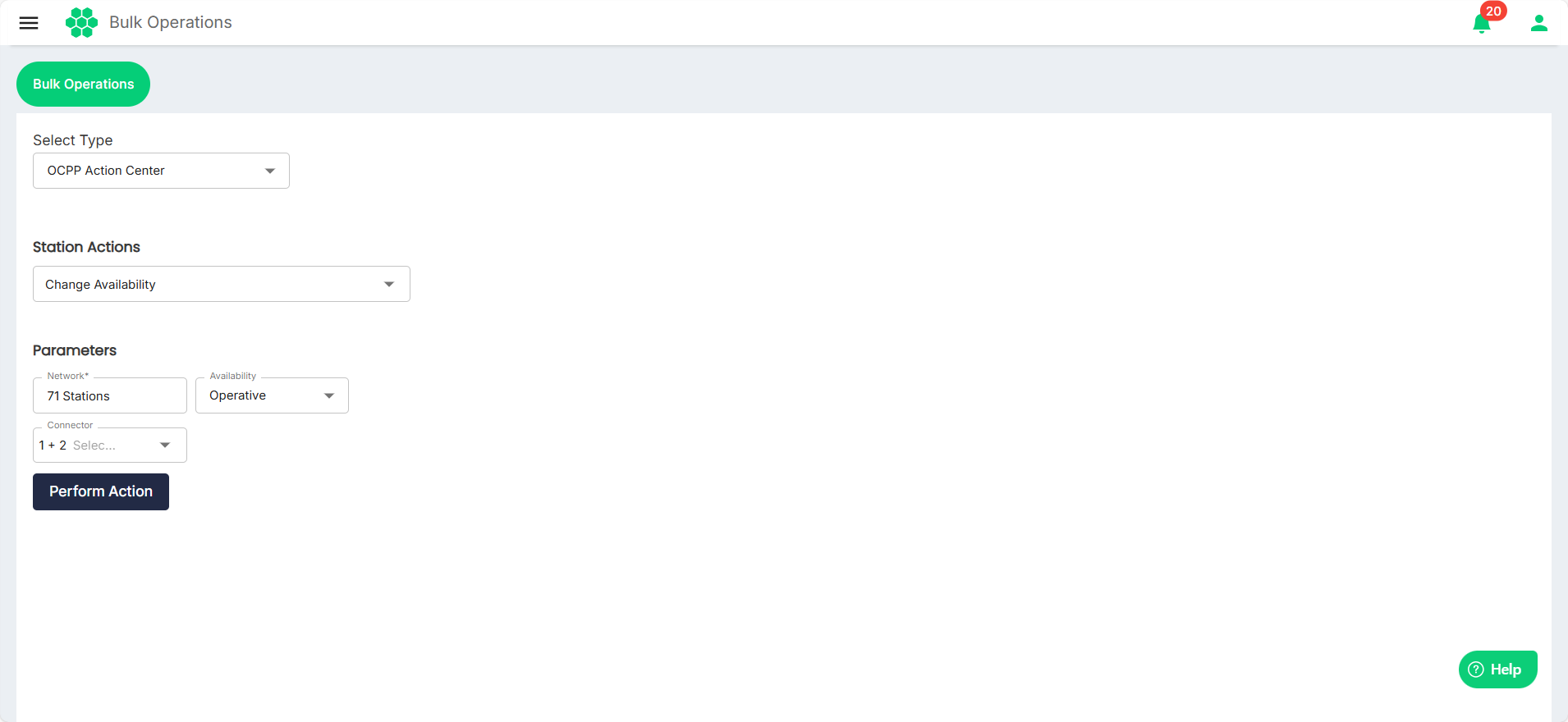

1. Select Change Availability from the Station Actions drop-down list, the following screen appears:
2. Specify the following parameters:
   • Network* (Mandatory)
   • Availability
   • Connector
3. Click Perform Action.

Reset Station

To reset the stations, follow these steps:

1. Select Change Availability from the Station Actions drop-down list, the following screen appears:
2. Select the stations you want to reset from the Network drop-down list.
3. Select the Hard/Soft as the reset type from the Reset Type drop-down list.
4. Click Perform Action.

Change Configuration

To change the configurations, follow these steps:

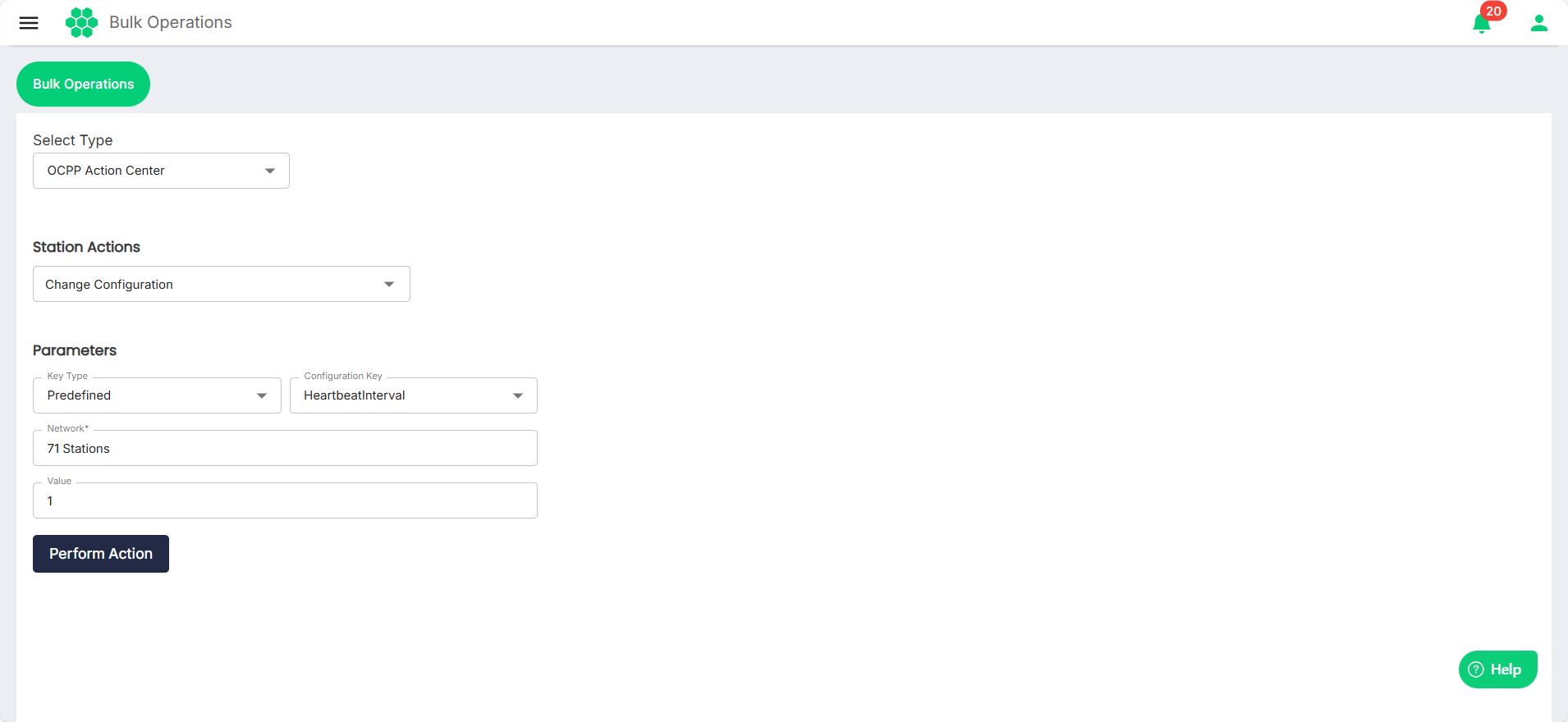

1. Select Change Configuration from the Station Actions drop-down list, the following screen appears:
2. Select the following parameters:
   • Key Type
   • Configuration Key
   • Network
3. Enter the Value.
4. Click Perform Action.

Trigger Messages

To trigger messages, follow these steps:

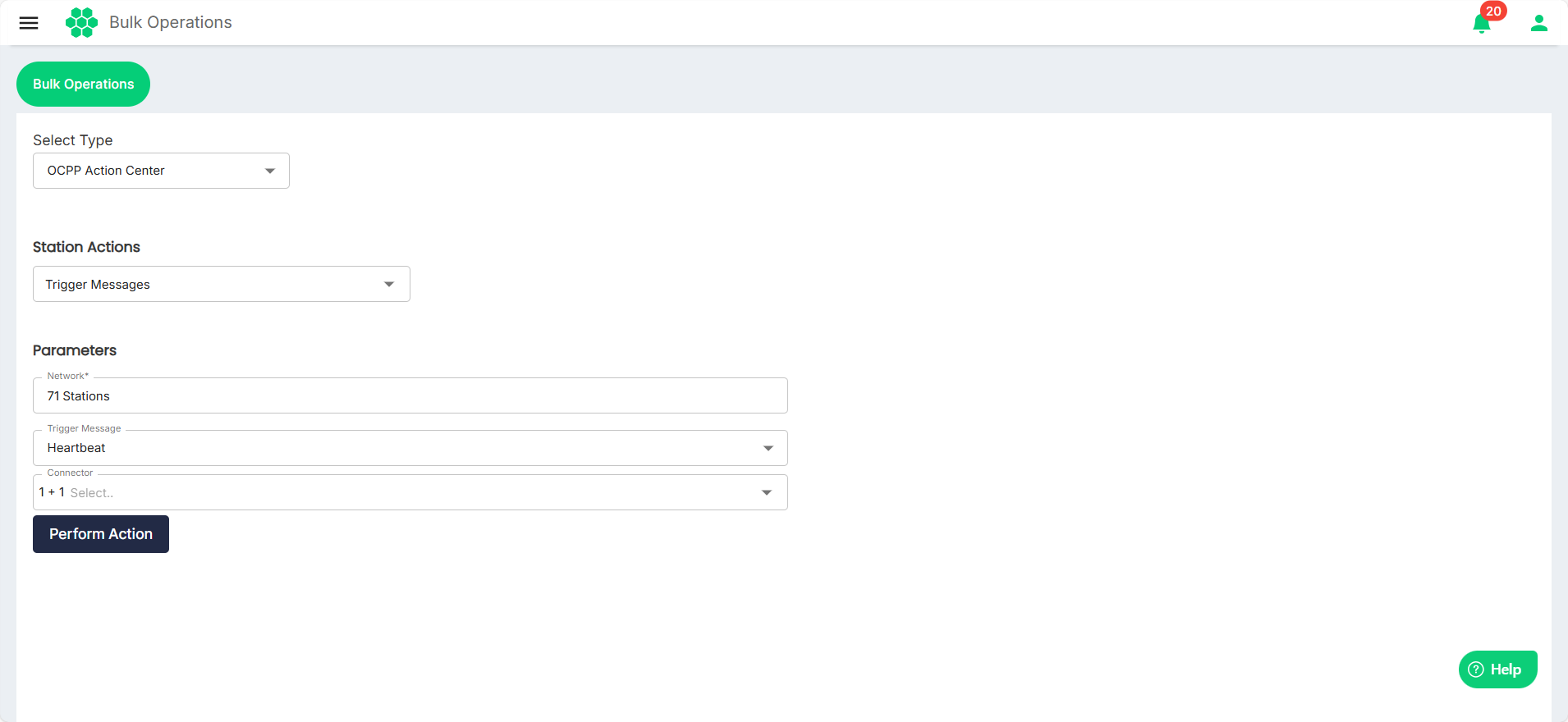

1. Select Trigger Messages from the Station Actions drop-down list, the following screen appears:
2. Select the following parameters:
   • Network
   • Trigger Message
   • Connector
3. Click Perform Action.
